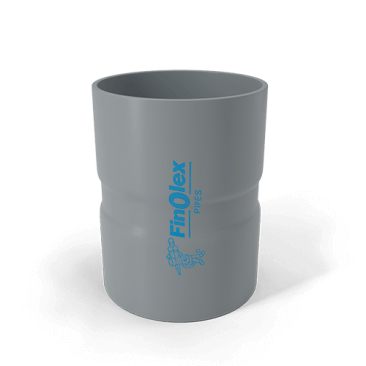

Dimensions of Fabricated Reducer Fitting
| Size (mm) |
Size (Inch) |
Pressure Rating (Kg/cm2) | Ød | B | C | Ø D | Material Code | Standard Pkg. | ||
| Min | Max | Min | Max | |||||||
| 140 x 110 | 5"x4" | 6 | 110.00 | 110.40 | 45.00 | 61.00 | 140.20 | 140.50 | 2439 | 25 |
| 200 x 160 | 8"x6" | 6 | 160.00 | 160.50 | 45.00 | 86.00 | 200.30 | 200.60 | 2440 | 10 |
| 250 x 200 | 10"x8" | 6 | 200.00 | 200.60 | 55.00 | 106.00 | 250.40 | 250.80 | 2441 | 1 |
| * All dimensions in "MM" | ||||||||||
