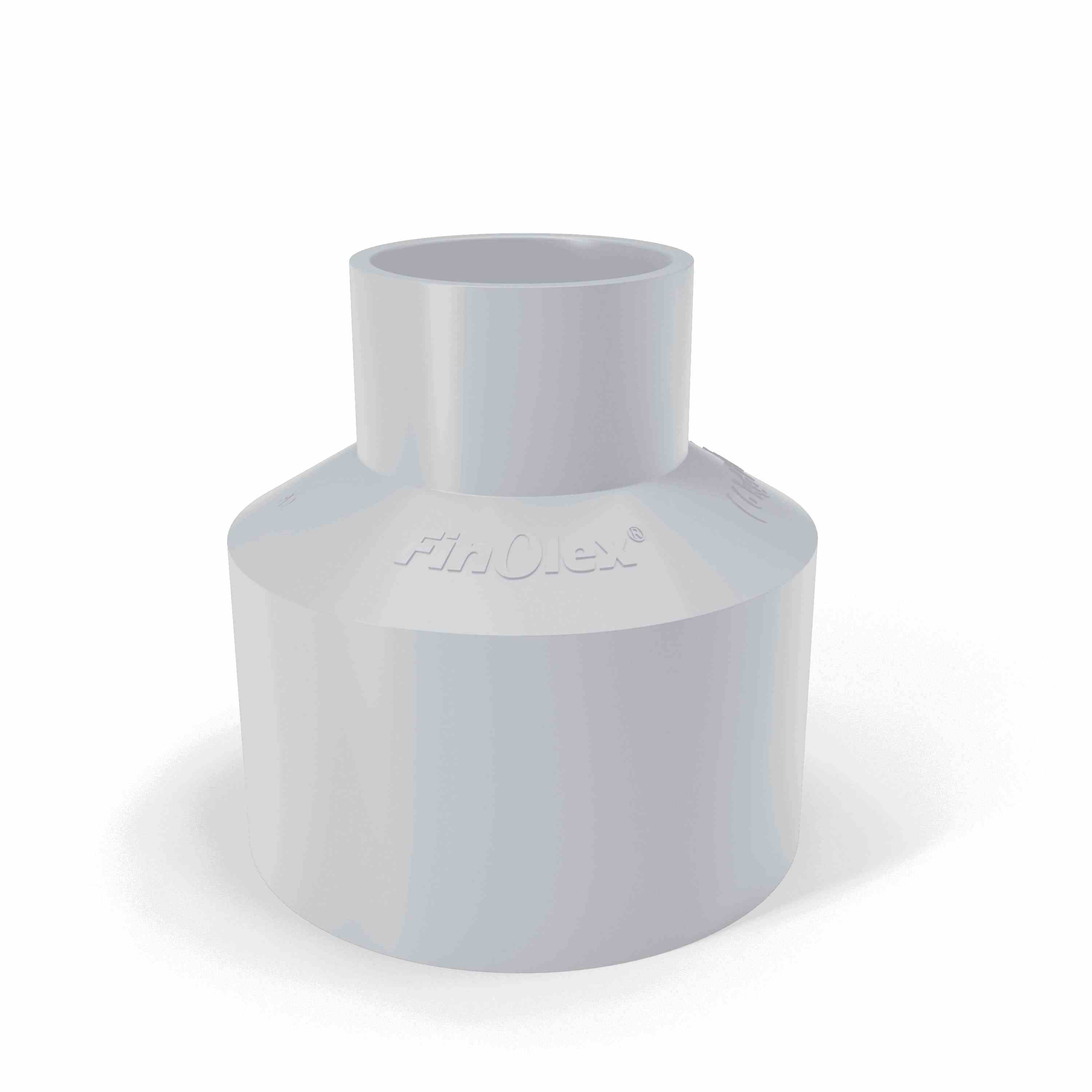

Agricultural Pipe - PVC Reducer Fitting
As Per IS 7834
The Agricultural Pipe - PVC Reducer Fitting serves as a vital component in connecting a service line to the main line in agricultural settings. This fitting is specifically designed to be installed after a tee connection in the pipeline. Its purpose is to reduce the pipe size, ensuring a seamless connection and proper flow of water or other fluids.

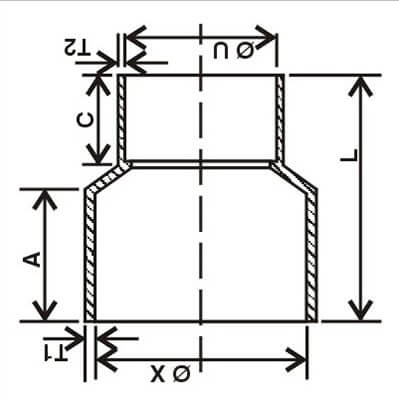

Dimensions of Moulded Reducer Fitting
| Size (mm) |
Size (Inch) |
Pressure Rating (Kg/cm2) | X | U | T1 | T2 | L | A | C | Material Code | Standard Pkg. |
| 25×20 | ¾"×½" | 10 | 25.30 | 20.25 | 3.80 | 3.40 | 37.60 | 17.30 | 15.60 | 2214 | 400 |
| 32×20 | 1"×½" | 6 | 32.40 | 20.40 | 3.00 | 3.00 | 47.40 | 24.00 | 18.00 | 2190 | 225 |
| 32×25 | 1"×¾" | 10 | 32.30 | 25.30 | 3.50 | 3.60 | 47.80 | 26.00 | 19.30 | 2215 | 200 |
| 40×32 | 1¼"×1" | 10 | 40.40 | 32.30 | 4.00 | 3.70 | 59.40 | 26.50 | 21.70 | 2216 | 100 |
| 50×32 | 1½"×1" | 10 | 50.30 | 32.30 | 4.00 | 3.10 | 68.00 | 35.00 | 30.00 | 2217 | 60 |
| 50×40 | 1½"×1¼" | 10 | 50.30 | 40.40 | 5.00 | 4.70 | 68.00 | 31.50 | 26.00 | 2218 | 50 |
| 63×32 | 2"×1" | 6 | 63.40 | 32.40 | 3.50 | 3.10 | 74.50 | 41.50 | 24.50 | 2191 | 100 |
| 63×40 | 2"×1¼"" | 6 | 63.40 | 40.40 | 3.30 | 3.10 | 80.00 | 41.30 | 26.50 | 2192 | 100 |
| 63×40 | 2"×1¼" | 10 | 63.40 | 40.40 | 4.30 | 3.20 | 80.00 | 40.50 | 28.00 | 2219 | 80 |
| 63×50 | 2"×1½" | 6 | 63.40 | 50.30 | 3.30 | 3.10 | 80.00 | 41.30 | 34.20 | 2193 | 100 |
| 75×32 | 2½"×1" | 6 | 75.40 | 32.40 | 3.20 | 3.10 | 81.00 | 46.00 | 24.00 | 2194 | 80 |
| 75×40 | 2½"×1¼" | 6 | 75.50 | 40.40 | 3.20 | 3.10 | 91.50 | 45.20 | 28.70 | 2195 | 80 |
| 75×50 | 2½"×1½" | 6 | 75.40 | 50.40 | 3.20 | 3.10 | 85.00 | 46.00 | 33.00 | 2196 | 80 |
| 75×63 | 2½"×2" | 6 | 75.70 | 63.40 | 3.20 | 3.30 | 84.00 | 40.80 | 37.50 | 2197 | 75 |
| 90×50 | 3"×1½" | 6 | 90.50 | 50.40 | 3.20 | 3.10 | 105.00 | 55.00 | 35.00 | 2198 | 50 |
| 90×63 | 3"×2" | 6 | 90.40 | 63.40 | 4.30 | 3.30 | 95.00 | 52.80 | 41.30 | 2199 | 50 |
| 90×75 | 3"×2½" | 6 | 90.40 | 75.70 | 4.30 | 3.70 | 106.00 | 52.80 | 45.50 | 2200 | 40 |
| 110×63 | 4"×2" | 6 | 110.50 | 63.30 | 4.00 | 3.20 | 129.00 | 61.00 | 38.00 | 2201 | 36 |
| 110×75 | 4"×2½" | 6 | 110.40 | 75.30 | 3.20 | 4.20 | 119.50 | 63.00 | 43.80 | 2202 | 30 |
| 110×90 | 4"×3" | 6 | 110.40 | 90.40 | 4.80 | 4.20 | 116.00 | 57.00 | 51.80 | 2203 | 30 |
| 140×75 | 5"×2½" | 6 | 140.60 | 75.40 | 4.80 | 3.20 | 159.50 | 79.00 | 44.00 | 2204 | 14 |
| 140×90 | 5"×3" | 6 | 140.60 | 90.50 | 4.80 | 3.20 | 159.48 | 79.00 | 51.50 | 2205 | 14 |
| 140×110 | 5"×4" | 6 | 140.60 | 110.50 | 4.80 | 3.70 | 159.00 | 76.00 | 61.00 | 2206 | 16 |
| 160×90 | 6"×3" | 6 | 160.70 | 90.50 | 5.40 | 3.20 | 178.23 | 88.50 | 51.50 | 2207 | 12 |
| 160×110 | 6"×4" | 6 | 160.70 | 110.40 | 6.50 | 5.30 | 167.10 | 88.50 | 59.60 | 2208 | 12 |
| 160×140 | 6"×5" | 6 | 160.70 | 140.60 | 5.40 | 4.80 | 188.00 | 88.50 | 76.00 | 2209 | 12 |
| 180×110 | 7"×4" | 6 | 180.80 | 110.50 | 6.50 | 4.00 | 199.70 | 99.00 | 61.00 | 2210 | 8 |
| 180×160 | 7"×6" | 6 | 180.80 | 160.70 | 6.50 | 5.40 | 201.30 | 99.00 | 86.50 | 2211 | 8 |
| 200×110 | 8"×4" | 6 | 201.00 | 110.50 | 7.20 | 4.00 | 221.40 | 109.00 | 61.50 | 2212 | 8 |
| 200×140 | 8"×5" | 6 | 201 | 140.6 | 7.2 | 4.8 | 220.8 | 109 | 76.5 | 2213 | 8 |
| * All dimensions in "MM" | |||||||||||
