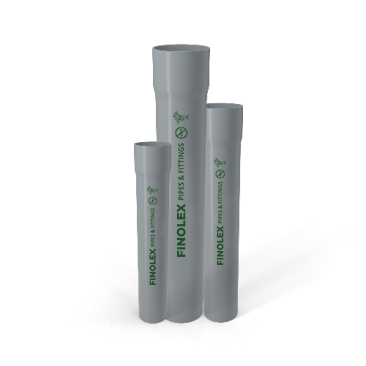

Agricultural Selfit PVC-U Pipe

Conforming to IS 4985

One end of the Selfit pipe is self-socketed and the other is plain. The snug fit of one pipe into the other due to the self-socketed and plain pipe fitment and solvent cement application, eliminates the use of any couplers.

Dimensions of PVC-U Agriculture Selfit Pipes

DIMENSIONS OF SELFIT PVC-U PIPES CONFORMING TO: IS 4985
Nominal Outside Diameter “D”  Mean Outside Diameter (mm) Wall Thickness (mm) Material Code Std.
Pipe Length
Class 1
0.25 Mpa		 Class 2
 0.40 Mpa		 Class 3
0.60 Mpa		 Class 4
0.80 Mpa		 Class 5
1.00 Mpa		 Class 6
1.25 Mpa		 Class 1
0.25 Mpa		 Class 2
 0.40 Mpa		 Class 3
0.60
Mpa		 Class 4
0.80
Mpa		 Class 5
1.00
Mpa		 Class 6
1.25
Mpa
mm inch min max min max min max min max min max min max min max             meter
25 3/4" 25.0 25.3 - - - - - - 1.2 1.6 1.4 1.8 1.7 2.1 - - - 1009 1010 1011 3
25 3/4" 25.0 25.3 - - - - - - 1.2 1.6 1.4 1.8 1.7 2.1 - - - 1012 1013 1014 5
25 3/4" 25.0 25.3 - - - - - - 1.2 1.6 1.4 1.8 1.7 2.1 - - - 1015 1016 1017 6
32 1" 32.0 32.3 - - - - - - 1.5 1.9 1.8 2.2 2.2 2.7 - - - 1018 1019 1020 3
32 1" 32.0 32.3 - - - - - - 1.5 1.9 1.8 2.2 2.2 2.7 - - - 1021 1022 1023 5
32 1" 32.0 32.3 - - - - - - 1.5 1.9 1.8 2.2 2.2 2.7 - - - 1024 1025 1026 6
40 1.1/4" 40.0 40.3 - - - - 1.4 1.8 1.8 2.2 2.2 2.7 2.8 3.3 - - 1027 1028 1029 1030 3
40 1.1/4" 40.0 40.3 - - - - 1.4 1.8 1.8 2.2 2.2 2.7 2.8 3.3 - - 1031 1032 1033 1034 5
40 1.1/4" 40.0 40.3 - - - - 1.4 1.8 1.8 2.2 2.2 2.7 2.8 3.3 - - 1035 1036 1037 1038 6
50 1.1/2" 50.0 50.3 - - - - 1.7 2.1 2.3 2.8 2.8 3.3 3.4 4.0 - - 1039 1040 1041 1042 3
50 1.1/2" 50.0 50.3 - - - - 1.7 2.1 2.3 2.8 2.8 3.3 3.4 4.0 - - 1043 1044 1045 1046 5
50 1.1/2" 50.0 50.3 - - - - 1.7 2.1 2.3 2.8 2.8 3.3 3.4 4.0 - - 1047 1048 1049 1050 6
63 2" 63.0 63.3 - - 1.5 1.9 2.2 2.7 2.8 3.3 3.5 4.1 4.3 5.0 - 1051 1052 1053 1054 1055 3
63 2" 63.0 63.3 - - 1.5 1.9 2.2 2.7 2.8 3.3 3.5 4.1 4.3 5.0 - 1056 1057 1058 1059 1060 5
63 2" 63.0 63.3 - - 1.5 1.9 2.2 2.7 2.8 3.3 3.5 4.1 4.3 5.0 - 1061 1062 1063 1064 1065 6
75 2.1/2" 75.0 75.3 - - 1.8 2.2 - - - - - - - - - 1066 - - - - 3
75 2.1/2" 75.0 75.3 - - 1.8 2.2 2.6 3.1 3.4 4.0 4.2 4.9 5.1 5.9 - 1067 1068 1069 1070 1071 5
75 2.1/2" 75.0 75.3 - - 1.8 2.2 2.6 3.1 3.4 4.0 4.2 4.9 5.1 5.9 - 1072 1073 1074 1075 1076 6
90 3" 90.0 90.3 1.3 1.7 2.1 2.6 3.1 3.7 4.0 4.6 5.0 5.7 6.1 7.1 1077 1078 1079 1080 1081 1082 5
90 3" 90.0 90.3 1.3 1.7 2.1 2.6 3.1 3.7 4.0 4.6 5.0 5.7 6.1 7.1 1083 1084 1085 1086 1087 1088 6
110 4" 110.0 110.4 1.6 2.0 2.5 3.0 3.7 4.3 4.9 5.6 6.1 7.1 7.5 8.7 1089 1090 1091 1092 1093 1094 3
110 4" 110.0 110.4 1.6 2.0 2.5 3.0 3.7 4.3 4.9 5.6 6.1 7.1 7.5 8.7 1095 1096 1097 1098 1099 1100 5
110 4" 110.0 110.4 1.6 2.0 2.5 3.0 3.7 4.3 4.9 5.6 6.1 7.1 7.5 8.7 1101 1102 1103 1104 1105 1106 6
125 4.1/2" 125.0 125.4 1.8 2.2 2.9 3.4 4.3 5.0 5.6 6.4 6.9 8.0 8.5 9.8 1110 1111 1112 1113 1114 1115 6
140 5" 140.0 140.5 2.0 2.4 3.2 3.8 4.8 5.5 6.3 7.3 7.7 8.9 9.5 11.0 1116 1117 1118 1119 1120 1121 3
140 5" 140.0 140.5 2.0 2.4 3.2 3.8 4.8 5.5 6.3 7.3 7.7 8.9 9.5 11.0 1122 1123 1124 1125 1126 1127 6
160 6" 160.0 160.5 2.3 2.8 3.7 4.3 5.4 6.2 7.2 8.3 8.8 10.2 10.9 12.6 1128 1129 1130 1131 1132 1133 3
160 6" 160.0 160.5 2.3 2.8 3.7 4.3 5.4 6.2 7.2 8.3 8.8 10.2 10.9 12.6 1134 1135 1136 1137 1138 1139 6
180 7" 180.0 180.6 2.6 3.1 4.2 4.9 6.1 7.1 8.0 9.2 9.9 11.4 - - 1140 1141 1142 1143 1144 - 3
180 7" 180.0 180.6 2.6 3.1 4.2 4.9 6.1 7.1 8.0 9.2 9.9 11.4 - - 1145 1146 1147 1148 1149 - 6
200 8" 200.0 200.6 2.9 3.4 4.6 5.3 6.8 7.9 8.9 10.3 11.0 12.7 - - 1150 1151 1152 1153 1154 - 3
200 8" 200.0 200.6 2.9 3.4 4.6 5.3 6.8 7.9 8.9 10.3 11.0 12.7 - - 1155 1156 1157 1158 1159 - 6
225 9" 225.0 225.7 3.3 3.9 5.2 6.0 7.6 8.8 10.0 11.5 12.4 14.3 - - 1160 1161 1162 1163 1164 - 6
250 10" 250.0 250.8 3.6 4.2 5.7 6.5 8.5 9.8 11.2 12.9 13.8 15.9 - - 1165 1166 1167 1168 1169 - 3
250 10" 250.0 250.8 3.6 4.2 5.7 6.5 8.5 9.8 11.2 12.9 13.8 15.9 - - 1170 1171 1172 1173 1174 - 6
280 11" 280.0 280.9 4.1 4.8 6.4 7.4 9.5 11.0 12.5 14.4 15.4 17.8 - - 1175 1176 1177 1178 1179 - 6
315 12" 315.0 316.0 4.6 5.3 7.2 8.3 10.7 12.4 14.0 16.1 17.3 19.9 - - 1180 1181 1182 1183 1184 - 3
315 12" 315.0 316.0 4.6 5.3 7.2 8.3 10.7 12.4 14.0 16.1 17.3 19.9 - - 1185 1186 1187 1188 1189 - 6
355 14" 355.0 356.1 5.1 5.9 8.1 9.4 12.0 13.8 15.8 18.2 19.6 22.6 - - 1190 1191 1192 1193 1194 - 6
400 16" 400.0 401.2 5.8 6.7 9.1 10.5 13.5 15.6 17.8 20.5 22.0 25.3 - - 1195 1196 1197 1198 1199 - 6

DIMENSIONS OF PVC-U RIGID AGRICULTURE PLAIN PIPES CONFORMING TO: IS 4985
Nominal Outside Diameter “D”  Mean Outside Diameter (mm) Wall Thickness (mm) Material Code Std.
Pipe Length
Class 1
0.25 Mpa		 Class 2
 0.40 Mpa		 Class 3
0.60 Mpa		 Class 4
0.80 Mpa		 Class 5
1.00 Mpa		 Class 6
1.25 Mpa		 Class 1
0.25 Mpa		 Class 2
 0.40 Mpa		 Class 3
0.60
Mpa		 Class 4
0.80
Mpa		 Class 5
1.00
Mpa		 Class 6
1.25
Mpa
mm inch min max min max min max min max min max min max min max             meter
20 1/2" 20.0 20.3 - - - - - - - - 1.1 1.5 - - - - - - 1001 - 3
20 1/2" 20.0 20.3 - - - - - - - - 1.1 1.5 - - - - - - 1002 - 5
20 1/2" 20.0 20.3 - - - - - - - - 1.1 1.5 1.4 1.8 - - - - 1003 1004 6
25 3/4" 25.0 25.3 - - - - - - - - 1.4 1.8 1.7 2.1 - - - - 1005 1006 5
32 1" 32.0 32.3 - - - - - - - - 1.8 2.2 2.2 2.7 - - - - 1007 1008 5

DIMENSIONS OF SELFIT (SLOTTED) PVC-U PIPES
Nominal Outside Diameter “D”  Mean Outside Diameter (mm) Wall Thickness (mm) Material Code Std.
Pipe Length
Class 1
0.25 Mpa		 Class 2
 0.40 Mpa		 Class 3
0.60 Mpa		 Class 4
0.80 Mpa		 Class 5
1.00 Mpa		 Class 6
1.25 Mpa		 Class 1
0.25 Mpa		 Class 2
 0.40 Mpa		 Class 3
0.60
Mpa		 Class 4
0.80
Mpa		 Class 5
1.00
Mpa		 Class 6
1.25
Mpa
mm inch min max min max min max min max min max min max min max             meter
75 2.1/2" 75.0 75.3 - - - - 2.6 3.1 - - -   - - - - 1107 - - - 6
110 4" 110.0 110.4 - - - - 3.7 4.3 - - 6.1 7.1 - - - - 1108 - 1109 - 6
140 5" 140.0 140.5 - - - - 4.8 5.5 - - - - - - - - 1200 - - - 6
160 6" 160.0 160.5 - - 3.7 4.3 5.4 6.2 7.2 8.3 8.8 10.2 - - - 1201 1202 1203 1204 - 6
180 7" 180.0 180.6 - - - - 6.1 7.1 - - - - - - - - 1205 - - - 6
200 8" 200.0 200.6 - - 4.6 5.3 6.8 7.9 - - 11.0 12.7 - - - 1206 1207 - 1208 - 6
225 9" 250.0 250.8 - - - - 7.6 8.8 - - - - - - - - 1209 - - - 6
250 10" 280.0 280.9 - - - - 8.5 9.8 - - 13.8 15.9 - - - - 1210 - 1211 - 6
315 12" 315.0 316.0 - - - - 10.7 12.4 - - - - - - - - 1212 - - - 6

Batch number logic:
Year  Month Day M/C No. Shift
xxxx xx xx xxx x
For example, the batch number of pipes produced on Mc. no. 20
on 1st June 2021 in the 1st shift will be 202106010201
