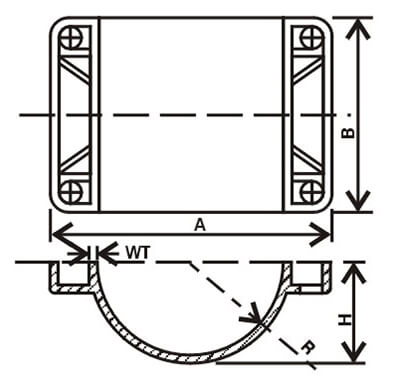

Dimensions of Service Pipe Saddle Threaded
| Size (mm) |
Size (Inch) |
Pressure Rating (Kg/cm2) | A | B | H (Top) |
H (Bottom) |
WT | Material Code | Standard Pkg. |
| 63x20 | 2"x½" | 6 | 108.00 | 85.50 | 61.15 | 37.25 | 6.50 | 2152 | 25 |
| 63x25 | 2"x¾" | 6 | 108.00 | 85.50 | 61.15 | 37.25 | 6.50 | 2153 | 25 |
| 63x32 | 2"x1" | 6 | 108.00 | 85.50 | 61.15 | 37.25 | 6.50 | 2154 | 25 |
| 75x20 | 2½"x½" | 6 | 123.00 | 92.50 | 67.15 | 42.75 | 6.20 | 2155 | 25 |
| 75x25 | 2½"x¾" | 6 | 123.00 | 92.50 | 64.80 | 47.10 | 6.20 | 2156 | 25 |
| 75x32 | 2½"x1" | 6 | 123.00 | 92.50 | 64.80 | 47.10 | 6.20 | 2157 | 25 |
| 90x20 | 3"x½" | 6 | 136.00 | 101.00 | 74.35 | 50.25 | 6.20 | 2158 | 25 |
| 90x25 | 3"x¾" | 6 | 136.00 | 101.00 | 74.35 | 50.25 | 6.20 | 2159 | 25 |
| 90x32 | 3"x1" | 6 | 136.00 | 101.00 | 74.35 | 50.25 | 6.20 | 2160 | 25 |
| 110x20 | 4"x½" | 6 | 155.00 | 103.00 | 83.35 | 60.25 | 6.20 | 2161 | 25 |
| 110x25 | 4"x¾" | 6 | 155.00 | 103.00 | 83.35 | 60.25 | 6.20 | 2162 | 25 |
| 110x32 | 4"x1" | 6 | 155.00 | 103.00 | 83.35 | 60.25 | 6.20 | 2163 | 25 |
| 140x20 | 5"x½" | 6 | 188.00 | 104.00 | 99.00 | 76.00 | 7.00 | 2164 | 25 |
| 140x25 | 5"x¾" | 6 | 188.00 | 104.00 | 99.00 | 76.00 | 7.00 | 2165 | 25 |
| 140x32 | 5"x1" | 6 | 188.00 | 104.00 | 99.00 | 76.00 | 7.00 | 2166 | 25 |
| 140x40 | 5"x1¼" | 6 | 188.00 | 104.00 | 99.00 | 76.00 | 7.00 | 2167 | 25 |
| 140x50 | 5"x1½" | 6 | 188.00 | 104.00 | 99.00 | 76.00 | 7.00 | 2168 | 25 |
| 140x63 | 5"x2" | 6 | 188.00 | 104.00 | 99.00 | 76.00 | 7.00 | 2169 | 25 |
| 160x20 | 6"x½" | 6 | 208.00 | 106.00 | 109.50 | 86.00 | 7.00 | 2170 | 25 |
| 160x25 | 6"x¾" | 6 | 208.00 | 106.00 | 109.50 | 86.00 | 7.00 | 2171 | 25 |
| 160x32 | 6"x1" | 6 | 208.00 | 106.00 | 109.50 | 86.00 | 7.00 | 2172 | 25 |
| 160x40 | 6"x1¼" | 6 | 208.00 | 106.00 | 109.50 | 86.00 | 7.00 | 2173 | 25 |
| 160x50 | 6"x1½" | 6 | 208.00 | 106.00 | 109.50 | 86.00 | 7.00 | 2174 | 25 |
| 160x63 | 6"x2" | 6 | 208.00 | 106.00 | 109.50 | 86.00 | 7.00 | 2175 | 25 |
| 180x20 | 7"x½" | 6 | 230.00 | 130.00 | 128.70 | 96.80 | 7.50 | 2176 | 16 |
| 180x25 | 7"x¾" | 6 | 230.00 | 130.00 | 128.70 | 96.80 | 7.50 | 2177 | 16 |
| 180x32 | 7"x1" | 6 | 230.00 | 130.00 | 128.70 | 96.80 | 7.50 | 2178 | 16 |
| 180x40 | 7"x1¼" | 6 | 230.00 | 130.00 | 128.70 | 96.80 | 7.50 | 2179 | 16 |
| 180x50 | 7"x1½" | 6 | 230.00 | 130.00 | 128.70 | 96.80 | 7.50 | 2180 | 16 |
| 180x63 | 7"x2" | 6 | 230.00 | 130.00 | 128.70 | 96.80 | 7.50 | 2181 | 16 |
| 180x75 | 7"x2½" | 6 | 230.00 | 130.00 | 128.70 | 96.80 | 7.50 | 2182 | 16 |
| 200x20 | 8"x½" | 6 | 250.00 | 135.00 | 138.70 | 107.30 | 8.00 | 2183 | 12 |
| 200x25 | 8"x¾" | 6 | 250.00 | 135.00 | 138.70 | 107.30 | 8.00 | 2184 | 12 |
| 200x32 | 8"x1" | 6 | 250.00 | 135.00 | 138.70 | 107.30 | 8.00 | 2185 | 12 |
| 200x40 | 8"x1¼" | 6 | 250.00 | 135.00 | 138.70 | 107.30 | 8.00 | 2186 | 12 |
| 200x50 | 8"x1½" | 6 | 250.00 | 135.00 | 138.70 | 107.30 | 8.00 | 2187 | 12 |
| 200x63 | 8"x2" | 6 | 250.00 | 135.00 | 138.70 | 107.30 | 8.00 | 2188 | 12 |
| 200x75 | 8"x2½" | 6 | 250.00 | 135.00 | 138.70 | 107.30 | 8.00 | 2189 | 12 |
| * All dimensions in "MM" | |||||||||
Related Products
-
COUPLER -
ELBOW 90° (PLAIN/THREADED) -
ELBOW 45° OLD -
TEE -
MALE THREADED ADAPTER OLD -
FEMALE THREADED ADAPTER (F.T.A.) – BRASS INSERT -
TAIL PIECE -
REDUCING BUSH -
REDUCING TEE -
REDUCING ELBOW 90° -
REDUCING ELBOW 90° – BRASS INSERT -
REDUCING ELBOW 90° – THREADED -
SINGLE Y -
REDUCING SINGLE Y -
SADDLE STRIP -
FLANGE -
BUTTERFLY VALVE – GEAR TYPE -
BUTTERFLY VALVE – HANDLE TYPE -
COMPACT BALL VALVE -
Agricultural Pipe Fitting for End Caps (Plain/Threaded) -
Agricultural Pipe-Foot Valve Fitting -
Agricultural Pipe - PVC Female-Threaded Adapter -
Agricultural Pipe - PVC Male-Threaded Adapter -
Agricultural Pipes - Elbow 45° Pipe Fitting -
Agricultural Pipes - Tee Fitting Brass Insert -

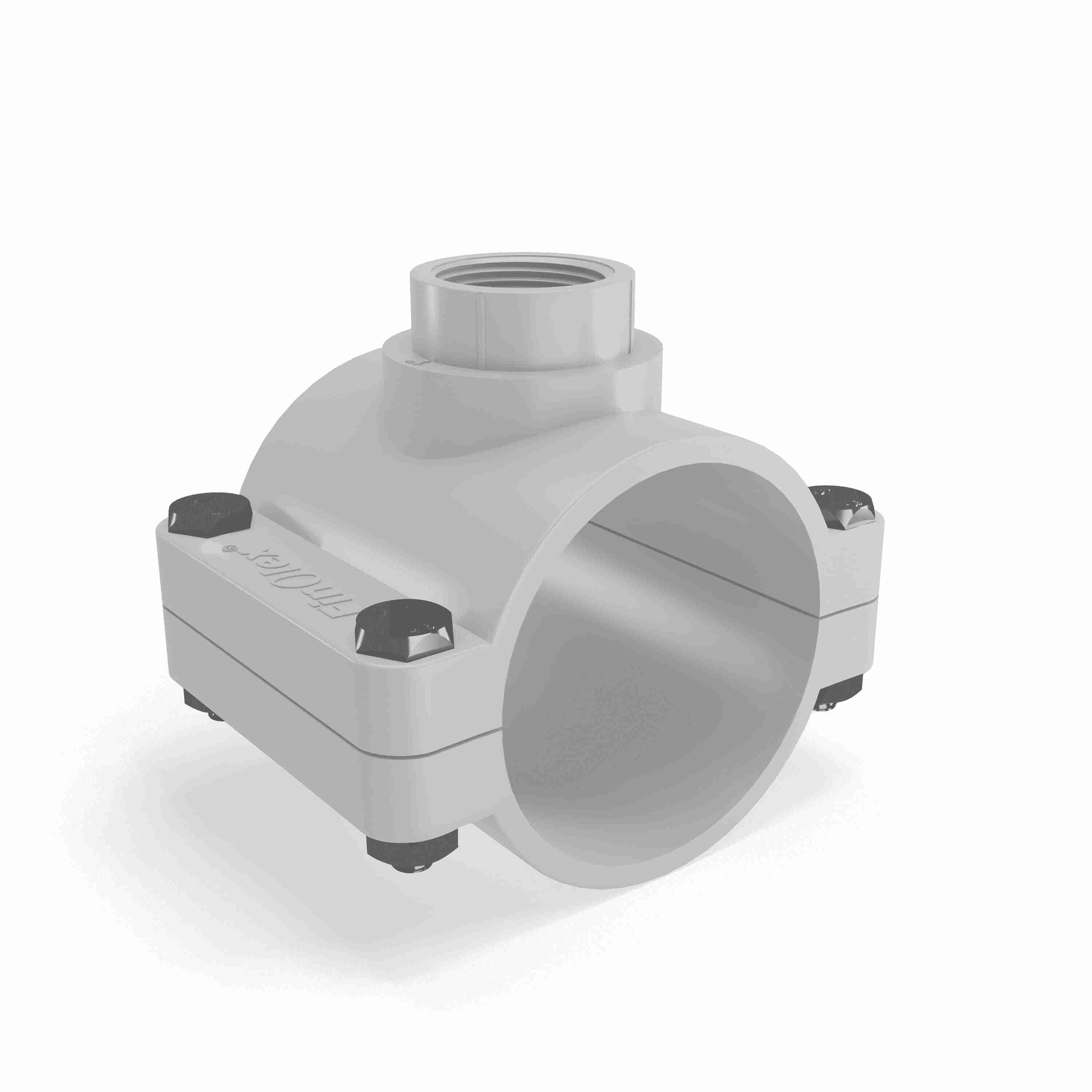

SERVICE SADDLE THREADED
