UPVC Column Pipes (Agriculture Products)

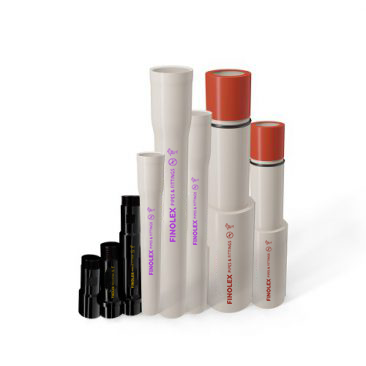

Finolex PVC-U column pipes are suitable for water extraction from the bore wells. These pipes are uniquely designed and manufactured using lead free compound on highly advanced, state-of-the-art CNC machines. Finolex column pipes have been designed to withstand system load comprising the weight of the pump, water and pipes with an adequate factor of safety.Finolex offers column pipes in coupler end and bell end variants in standard lengths of 1.5 & 3 meters. These pipes are available in sizes between 25 and 100 mm (1” to 4”) diameter with a full range of pressure ratings in V4, Crystal, Medium, Standard, Heavy and Super Heavy types as per requirement based on installation depth from 100 to 400 meters. A high torque resistant locking system and a specially designed rubber “O” ring ensure trouble-free operation.
DIMENSIONS
| DIMENSIONS OF PVC - U COLUMN PIPES - COUPLER TYPE | ||||||||||
| Nominal Bore Size (mm) | Type | Wall Thickness in mm | Safe allowable Hydrostatic Pressure | Safe Delivery Head | Material Code |
Std. Pipe Length |
||||
| End | Barrel | |||||||||
| mm | inch | Min | Max. | Min | Max. | kg/cm2 | meter | meter | ||
| 25 | 1" | V4 (Coupler)- 12.5 KG | 4.1 | 4.5 | 1.7 | 2.0 | 12.5 | 125 | 3501 | 3 |
| 25 | 1" | V4 (Coupler)- 15.0 KG | 4.7 | 5.0 | 2.0 | 2.3 | 15.0 | 150 | 3503 | 3 |
| 25 | 1" | Crystal (Coupler) | 5.0 | 5.3 | 2.5 | 2.8 | 21.0 | 210 | 3507 | 3 |
| 25 | 1" | Standard (Coupler) | 5.7 | 6.3 | 4.0 | 4.4 | 30.0 | 300 | 3520 | 3 |
| 32 | 1.1/4" | V4 (Coupler)- 12.5 KG | 4.4 | 4.8 | 2.3 | 2.6 | 12.5 | 125 | 3502 | 3 |
| 32 | 1.1/4" |
V4 (Coupler)- 15.0 KG |
4.6 | 4.9 | 2.4 | 2.7 | 15.0 | 150 | 3504 | 3 |
| 32 | 1.1/4" | Crystal (Coupler) | 4.8 | 5.1 | 2.8 | 3.1 | 21.0 | 210 | 3508 | 3 |
| 32 | 1.1/4" | Standard (Coupler) | 6.3 | 6.7 | 4.1 | 4.4 | 25.0 | 250 | 3521 | 3 |
| 32 | 1.1/4" | Heavy (Coupler) | 6.8 | 7.2 | 5.2 | 5.8 | 35.0 | 350 | 3531 | 3 |
| 32 | 1.1/4" | Super Heavy (Coupler) | 7.8 | 8.3 | 5.3 | 5.7 | 40.0 | 400 | 3541 | 3 |
| 40 | 1.1/2" | V4 (Coupler)- 15.0 KG | 4.5 | 4.8 | 2.7 | 3.0 | 15.0 | 150 | 3506 | 1.5 |
| 40 | 1.1/2" | V4 (Coupler)- 15.0 KG | 4.5 | 4.8 | 2.7 | 3.0 | 15.0 | 150 | 3505 | 3 |
| 40 | 1.1/2" | Crystal (Coupler) | 5.3 | 5.6 | 3.5 | 3.8 | 21.0 | 210 | 3510 | 1.5 |
| 40 | 1.1/2" | Crystal (Coupler) | 5.3 | 5.6 | 3.5 | 3.8 | 21.0 | 210 | 3509 | 3 |
| 40 | 1.1/2" | Standard (Coupler) | 6.6 | 6.9 | 4.1 | 4.4 | 26.0 | 260 | 3523 | 1.5 |
| 40 | 1.1/2" | Standard (Coupler) | 6.6 | 6.9 | 4.1 | 4.4 | 26.0 | 260 | 3522 | 3 |
| 40 | 1.1/2" | Heavy (Coupler) | 8.4 | 8.8 | 5.9 | 6.2 | 35.0 | 350 | 3533 | 1.5 |
| 40 | 1.1/2" | Heavy (Coupler) | 8.4 | 8.8 | 5.9 | 6.2 | 35.0 | 350 | 3532 | 3 |
| 40 | 1.1/2" | Super Heavy (Coupler) | 8.5 | 9.0 | 6.0 | 6.5 | 40.0 | 400 | 3542 | 3 |
| 50 | 2" | Crystal (Coupler) | 5.6 | 6.1 | 3.4 | 3.9 | 17.0 | 170 | 3511 | 3 |
| 50 | 2" | Crystal (Coupler) | 5.6 | 6.1 | 3.4 | 3.9 | 17.0 | 170 | 3512 | 1.5 |
| 50 | 2" | Medium (Coupler) | 5.1 | 5.4 | 2.6 | 2.9 | 13.0 | 130 | 3514 | 1.5 |
| 50 | 2" | Medium (Coupler) | 5.1 | 5.4 | 2.6 | 2.9 | 13.0 | 130 | 3513 | 3 |
| 50 | 2" | Standard (Coupler) | 6.4 | 6.8 | 3.9 | 4.3 | 20.0 | 200 | 3525 | 1.5 |
| 50 | 2" | Standard (Coupler) | 6.4 | 6.8 | 3.9 | 4.3 | 20.0 | 200 | 3524 | 3 |
| 50 | 2" | Heavy (Coupler) | 7.9 | 8.4 | 5.3 | 5.7 | 27.0 | 270 | 3535 | 1.5 |
| 50 | 2" | Heavy (Coupler) | 7.9 | 8.4 | 5.3 | 5.7 | 27.0 | 270 | 3534 | 3 |
| 50 | 2" | Super Heavy (Coupler) | 9.0 | 9.5 | 6.5 | 7.0 | 35.0 | 350 | 3543 | 3 |
| 65 | 2.1/2" | Medium (Coupler) |
5.1 | 5.4 | 2.6 | 2.9 | 10.0 | 100 | 3516 | 1.5 |
| 65 | 2.1/2" | Medium (Coupler) |
5.1 | 5.4 | 2.6 | 2.9 | 10.0 | 100 | 3515 | 3 |
| 65 | 2.1/2" | Standard (Coupler) | 6.5 | 6.9 | 4.0 | 4.4 | 16.0 | 160 | 3527 | 1.5 |
| 65 | 2.1/2" | Standard (Coupler) | 6.5 | 6.9 | 4.0 | 4.4 | 16.0 | 160 | 3526 | 3 |
| 65 | 2.1/2" | Heavy (Coupler) | 9.1 | 9.6 | 6.3 | 6.8 | 26.0 | 260 | 3537 | 1.5 |
| 65 | 2.1/2" | Heavy (Coupler) | 9.1 | 9.6 | 6.3 | 6.8 | 26.0 | 260 | 3536 | 3 |
| 65 | 2.1/2" | Super Heavy (Coupler) | 10.8 | 11.4 | 8.3 | 8.8 | 35.0 | 350 | 3544 | 3 |
| 80 | 3" | Medium (Coupler) |
5.7 | 6.1 | 3.2 | 3.5 | 11.0 | 110 | 3518 | 1.5 |
| 80 | 3" | Medium (Coupler) |
5.7 | 6.1 | 3.2 | 3.5 | 11.0 | 110 | 3517 | 3 |
| 80 | 3" | Standard (Coupler) | 7.5 | 7.9 | 5.0 | 5.5 | 17.0 | 170 | 3529 | 1.5 |
| 80 | 3" | Standard (Coupler) | 7.5 | 7.9 | 5.0 | 5.5 | 17.0 | 170 | 3528 | 3 |
| 80 | 3" | Heavy (Coupler) | 9.8 | 10.3 | 7.3 | 7.8 | 26.0 | 260 | 3539 | 1.5 |
| 80 | 3" | Heavy (Coupler) | 9.8 | 10.3 | 7.3 | 7.8 | 26.0 | 260 | 3538 | 3 |
| 100 | 4" | Medium (Coupler) |
6.3 | 6.8 | 3.8 | 4.3 | 10.0 | 100 | 3519 | 3 |
| 100 | 4" | Standard (Coupler) | 8.2 | 8.5 | 5.7 | 6.2 | 15.0 | 150 | 3530 | 3 |
| 100 | 4" | Heavy (Coupler) | 11.9 | 12.3 | 9.4 | 10.0 | 26.0 | 260 | 3540 | 3 |
| DIMENSIONS OF PVC - U COLUMN PIPES - BELL END TYPE | ||||||||||
| Nominal Bore Size (mm) | Type | Wall Thickness in mm | Safe allowable Hydrostatic Pressure | Safe Delivery Head | Material Code |
Std. Pipe Length |
||||
| End | Barrel | |||||||||
| mm | inch | Min | Max. | Min | Max. | kg/cm2 | meter | meter | ||
| 25 | 1" | V4 (Bell) - 12.5 KG | 3.7 | 4.0 | 1.7 | 2.0 | 12.5 | 125 | 3545 | 3 |
| 25 | 1" | V4 (Bell) - 15.0 KG | 3.7 | 4.0 | 2.0 | 2.3 | 15.0 | 150 | 3547 | 3 |
| 25 | 1" | Crystal (BELL) | 4.0 | 4.4 | 2.5 | 2.8 | 21.0 | 210 | 3550 | 3 |
| 25 | 1" | Standard (BELL) | 5.1 | 5.5 | 4.0 | 4.4 | 30.0 | 300 | 3553 | 3 |
| 32 | 1.1/4" | V4 (Bell) - 12.5 KG | 4.1 | 4.5 | 2.3 | 2.6 | 12.5 | 125 | 3546 | 3 |
| 32 | 1.1/4" | V4 (Bell) - 15.0 KG | 4.1 | 4.5 | 2.5 | 2.8 | 15.0 | 150 | 3548 | 3 |
| 32 | 1.1/4" | Crystal (BELL) | 4.7 | 5.1 | 3.0 | 3.3 | 21.0 | 210 | 3551 | 3 |
| 32 | 1.1/4" | Standard (BELL) | 5.3 | 5.7 | 4.2 | 4.6 | 25.0 | 250 | 3554 | 3 |
| 40 | 1.1/2" | V4 (Bell) - 15.0 KG | 4.5 | 4.8 | 2.8 | 3.1 | 15.0 | 150 | 3549 | 3 |
| 40 | 1.1/2" | Crystal (BELL) | 5.0 | 5.4 | 3.5 | 3.8 | 21.0 | 210 | 3552 | 3 |
| 40 | 1.1/2" | Standard (BELL) | 5.5 | 5.9 | 4.3 | 4.6 | 26.0 | 260 | 3555 | 3 |
| Batch number logic: | ||||||||||
| Year | Month | Day | M/C No. | Shift | ||||||
| xxxx | xx | xx | xxx | x | ||||||
| For example, the batch number of pipes produced on Mc. no. 20 | ||||||||||
| on 1st June 2021 in the 1st shift will be 202106010201 | ||||||||||
