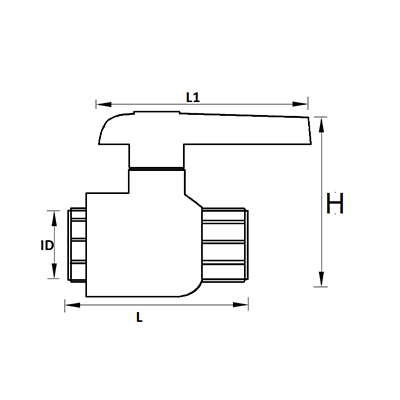

Dimensions of Cpvc Ball Valve
| Size (mm) |
Size (Inch) |
ID | L | H | L1 | Material Code | Standard Pkg. |
| 15 | ½” | 16.08 | 62.40 | 57.80 | 74.60 | 6114 | 50 |
| 20 | ¾” | 22.45 | 78.46 | 76.60 | 85.30 | 6115 | 48 |
| 25 | 1” | 28.87 | 92.01 | 98.40 | 110.00 | 6116 | 24 |
| 32 | 1¼” | 35.20 | 110.08 | 113.40 | 116.80 | 6117 | 12 |
| 40 | 1½” | 41.66 | 128.84 | 123.78 | 132.00 | 6118 | 8 |
| 50 | 2” | 54.38 | 164.69 | 159.75 | 161.40 | 6119 | 4 |
| * ALL dimensions in "MM" | |||||||
