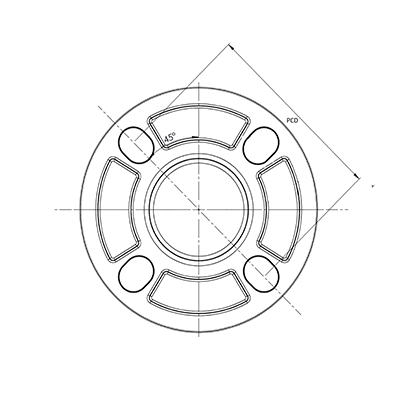

Dimensions of Flange with Gasket - Open
| Size (mm) |
Size (Inch) |
PCD | Material Code | Standard Pkg. |
| 25 | 1" | 79.20 | 6201 | 80 |
| 32 | 1.1/4" | 88.90 | 6202 | 60 |
| 40 | 1.1/2" | 98.60 | 6203 | 40 |
| 50 | 2" | 120.60 | 6204 | 30 |
| * ALL dimensions in "MM" |
