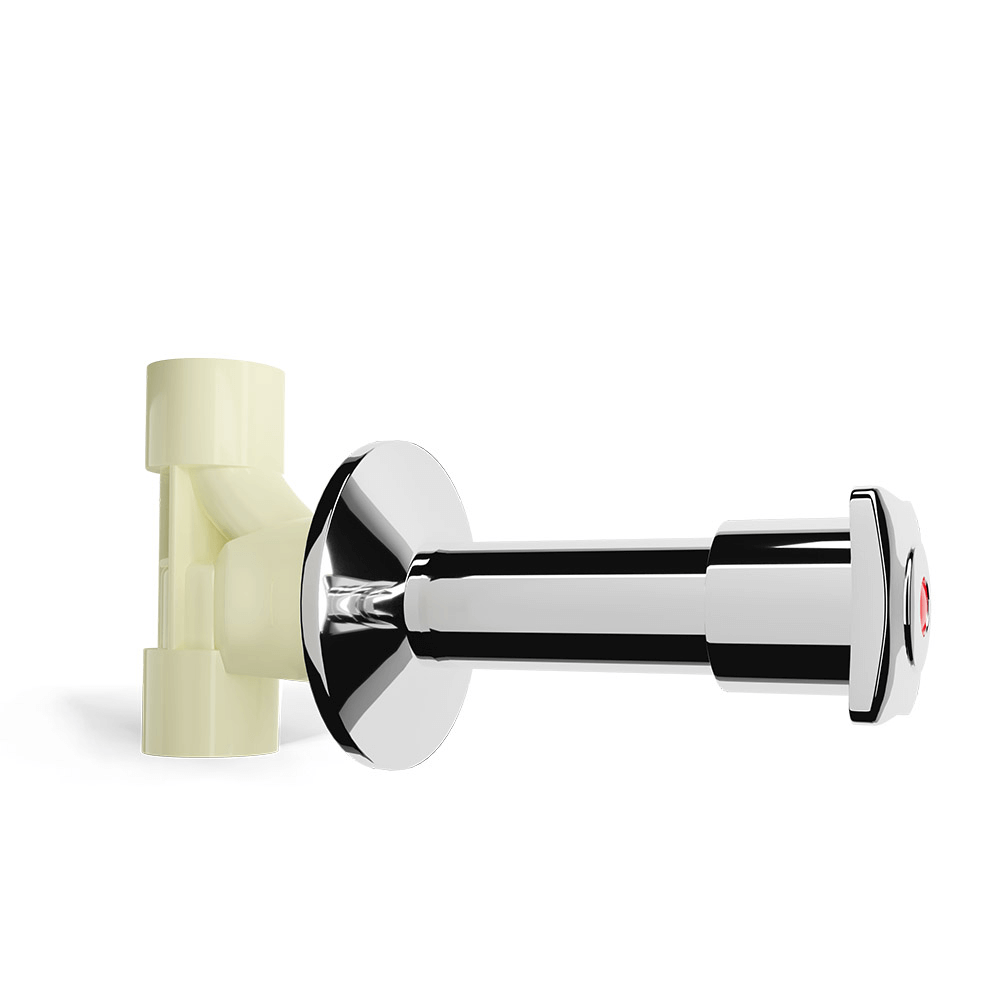

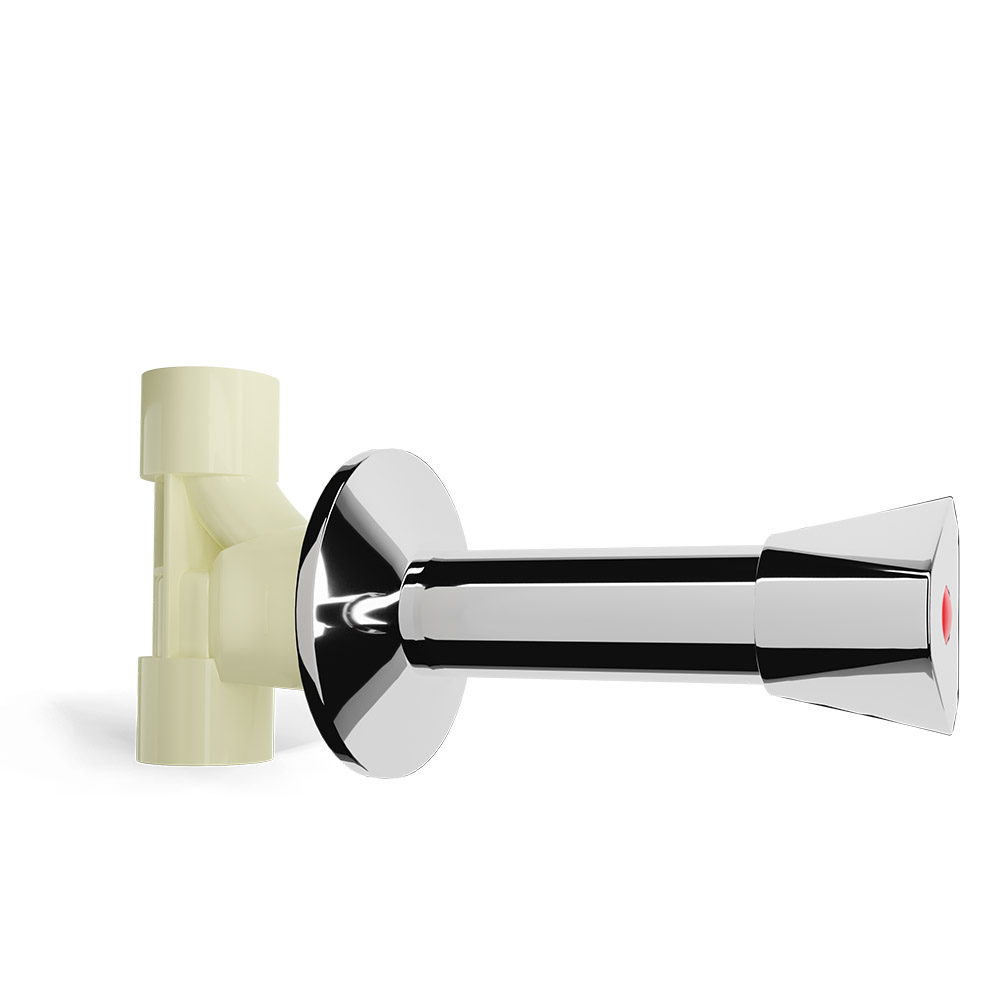

Dimensions of Long Concealed Valve
| Size (mm) |
Size (Inch) |
Turn Type | Knob Type | Material Code | Std. Pkg. |
| 15 | 1/2" | QUARTER TURN |
TRIANGLE | 6301 | 20 |
| 15 | 1/2" | SQUARE | 6295 | 20 | |
| 15 | 1/2" | ROUND | 6307 | 20 | |
| 15 | 1/2" | FULL TURN |
TRIANGLE | 6304 | 20 |
| 15 | 1/2" | SQUARE | 6298 | 20 | |
| 15 | 1/2" | ROUND | 6310 | 20 | |
| 20 | 3/4" | QUARTER TURN |
TRIANGLE | 6302 | 20 |
| 20 | 3/4" | SQUARE | 6296 | 20 | |
| 20 | 3/4" | ROUND | 6308 | 20 | |
| 20 | 3/4" | FULL TURN |
TRIANGLE | 6305 | 20 |
| 20 | 3/4" | SQUARE | 6299 | 20 | |
| 20 | 3/4" | ROUND | 6311 | 20 | |
| 25 | 1" | QUARTER TURN |
TRIANGLE | 6303 | 20 |
| 25 | 1" | SQUARE | 6297 | 20 | |
| 25 | 1" | ROUND | 6309 | 20 | |
| 25 | 1" | FULL TURN |
TRIANGLE | 6306 | 20 |
| 25 | 1" | SQUARE | 6300 | 20 | |
| 25 | 1" | ROUND | 6312 | 20 | |
| * All dimensions in "MM" | |||||
