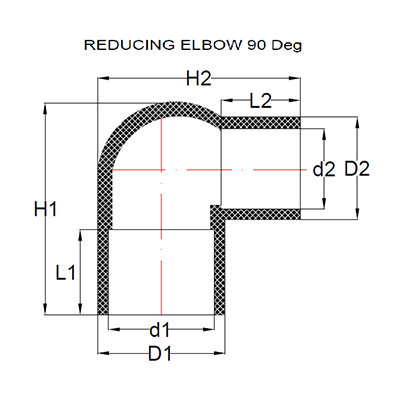

Dimensions of Reducing Elbow Pipe Fittings
| Size (mm) |
Size (Inch) |
D1 | d1 | D2 | d2 | L1 | L2 | H1 | H2 | Material Code | Standard Pkg. |
| 20x15 | ¾"x½" | 26.95 | 22.45 | 20.00 | 16.10 | 18.70 | 13.10 | 39.00 | 40.50 | 6156 | 150 |
| 25x15 | 1"x½" | 33.60 | 28.90 | 20.60 | 16.18 | 23.20 | 13.00 | 49.60 | 44.20 | 6157 | 180 |
| 25x20 | 1"x¾" | 34.51 | 28.87 | 27.01 | 22.45 | 22.94 | 17.93 | 53.76 | 51.31 | 6158 | 275 |
| 32x15 | 1¼"x½" | 42.40 | 35.20 | 21.30 | 16.10 | 28.00 | 13.00 | 55.29 | 52.88 | 6159 | 105 |
| 32x20 | 1¼"x¾" | 42.40 | 35.20 | 28.00 | 22.50 | 28.00 | 18.00 | 61.79 | 58.00 | 6160 | 75 |
| 32x25 | 1¼"x1" | 42.40 | 35.20 | 34.60 | 28.90 | 28.00 | 23.00 | 61.70 | 63.30 | 6161 | 75 |
| 40x20 | 1½"x¾" | 49.30 | 41.70 | 28.00 | 22.50 | 33.50 | 18.00 | 67.20 | 64.86 | 6162 | 40 |
| 40x25 | 1½"x1" | 49.30 | 41.70 | 34.20 | 28.90 | 33.50 | 23.30 | 70.16 | 73.46 | 6163 | 36 |
| 50x25 | 2"x1" | 64.40 | 54.40 | 34.20 | 28.90 | 43.50 | 23.30 | 83.44 | 83.81 | 6164 | 24 |
| * ALL dimensions in "MM" | |||||||||||
