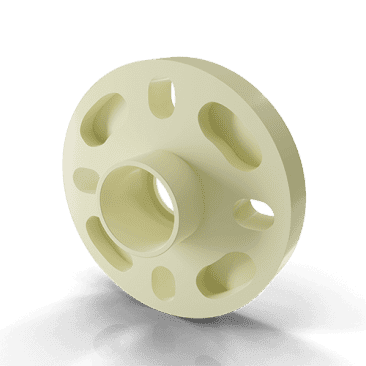

CPVC Pipe - Sch 80 Flange With Gasket Open
AS PER ASTM D-4024
The CPVC Pipe - SCH 80 Flange With Gasket Open is a vital component for connecting pipes, valves, and pumps to create a seamless and efficient piping system. This flange not only ensures a secure connection but also allows for convenient access for cleaning, inspection, and modifications, making maintenance and adjustments hassle-free.
Dimensions of SCH 80 Flange with Open Gasket
| Size (mm) |
Size (Inch) |
PCD | Material Code | Standard Pkg. |
| 65 | 2.1/2" | 139.70 | 6287 | 2 |
| 80 | 3" | 152.40 | 6288 | 2 |
| 100 | 4" | 190.50 | 6289 | 2 |
| 150 | 6" | 241.30 | 6290 | 1 |
| * ALL dimensions in "MM" |
