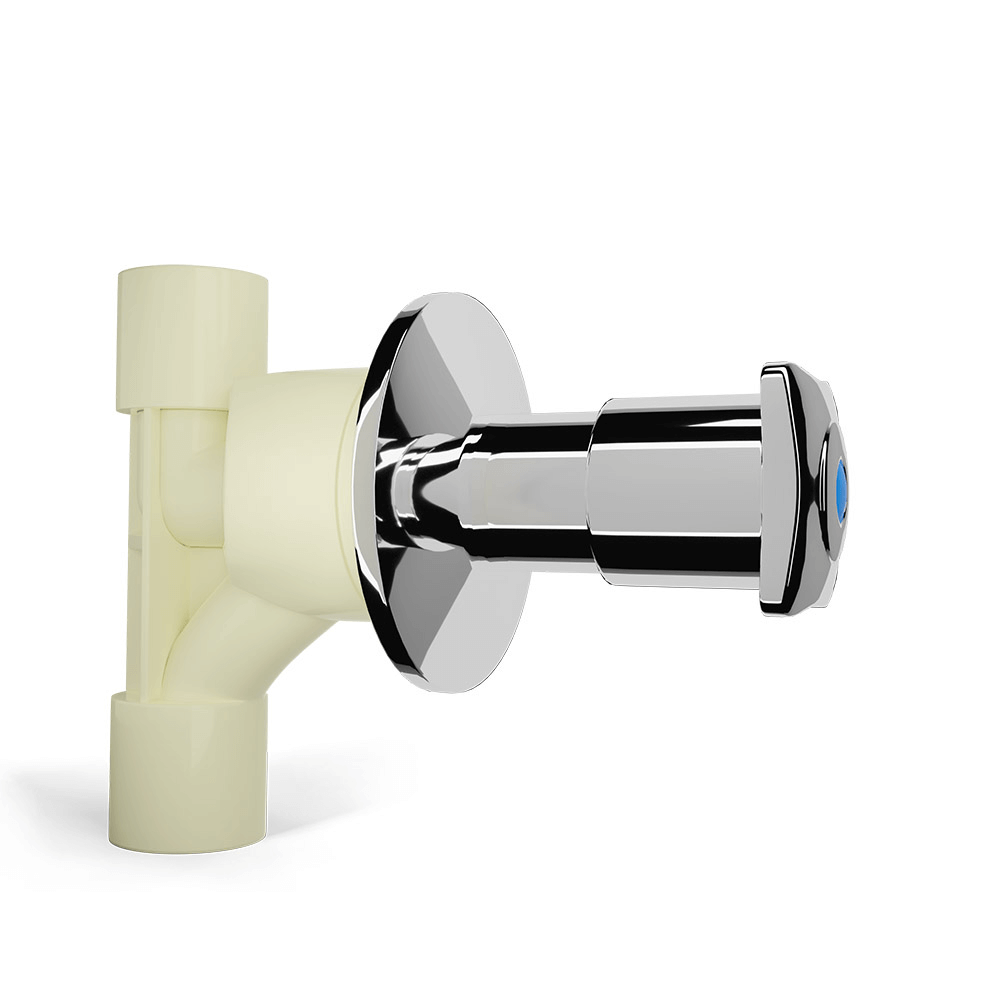

Dimensiosns of Cpvc Concealed Valve
| Size (mm) |
Size (Inch) |
Turn Type | Knob Type | Material Code | Std. Pkg. |
| 15 | 1/2" | QUARTER TURN |
TRIANGLE | 6319 | 20 |
| 15 | 1/2" | SQUARE | 6313 | 20 | |
| 15 | 1/2" | ROUND | 6325 | 20 | |
| 15 | 1/2" | FULL TURN |
TRIANGLE | 6322 | 20 |
| 15 | 1/2" | SQUARE | 6316 | 20 | |
| 15 | 1/2" | ROUND | 6328 | 20 | |
| 20 | 3/4" | QUARTER TURN |
TRIANGLE | 6320 | 20 |
| 20 | 3/4" | SQUARE | 6314 | 20 | |
| 20 | 3/4" | ROUND | 6326 | 20 | |
| 20 | 3/4" | FULL TURN |
TRIANGLE | 6323 | 20 |
| 20 | 3/4" | SQUARE | 6317 | 20 | |
| 20 | 3/4" | ROUND | 6329 | 20 | |
| 25 | 1" | QUARTER TURN |
TRIANGLE | 6321 | 20 |
| 25 | 1" | SQUARE | 6315 | 20 | |
| 25 | 1" | ROUND | 6327 | 20 | |
| 25 | 1" | FULL TURN |
TRIANGLE | 6324 | 20 |
| 25 | 1" | SQUARE | 6318 | 20 | |
| 25 | 1" | ROUND | 6330 | 20 | |
| * All dimensions in "MM" | |||||
