CPVC Top Bottom 6″ & 7″ - Wall Mixer Adapter
AS PER ASTM D-2846
The CPVC Top Bottom 6" & 7" - Wall Mixer Adapter is an essential component in plumbing systems. It enables the wall mixer unit to draw water from separate hot and cold sources. It combines them into a single flow, facilitating controlled temperature and water supply.

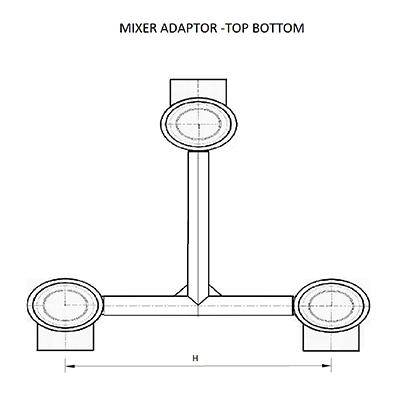

Dimensions of Top Bottom Mixer
| Size (mm) |
Size (Inch) |
H | Material Code | Standard Pkg. |
| 20 x 15 | 3/4" x 1/2" | 6" | 6211 | 6 |
| 20 x 15 | 3/4" x 1/2" | 7" | 6212 | 6 |
| * All dimensions in "MM" | ||||
