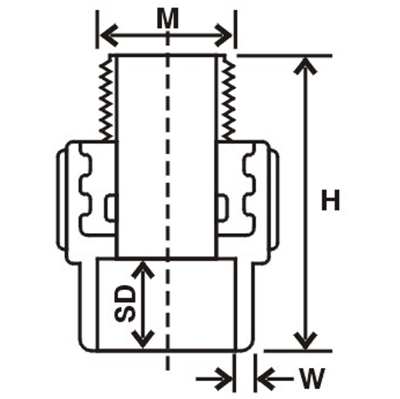

Dimensions of Male Threaded Adaptor Brass Insert
| Size (mm) |
Size (Inch) |
H | W | SD | Material Code | Standard Pkg. |
| 15 | ½” | 62.00 | 3.73 | 22.22 | 4588 | 150 |
| 20 | ¾” | 68.00 | 3.91 | 25.4 | 4589 | 112 |
| 25 | 1” | 74.50 | 4.55 | 28.58 | 4590 | 80 |
| 32 | 1¼” | 60.50 | 4.85 | 31.75 | 4591 | 48 |
| 40 | 1½” | 66.93 | 5.08 | 34.93 | 4592 | 40 |
| 50 | 2” | 83.50 | 5.54 | 38.10 | 4593 | 10 |
| 65 | 2.1/2" | 109.40 | 7.46 | 45.00 | 4594 | 6 |
| 80 | 3" | 111.80 | 7.62 | 48.00 | 4595 | 5 |
| * All dimensions in "MM" |
