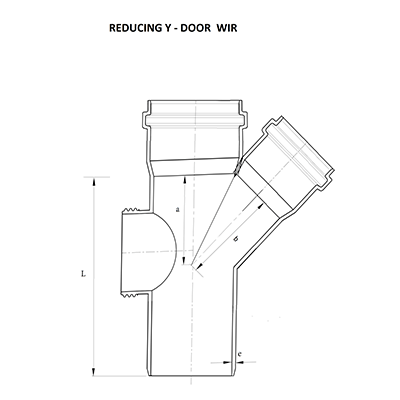

Dimensions of Swr Reducing Y Door
| Nominal Dia (mm) | Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 110 x 75 | 4"x2½" | 204.00 | 124.00 | 109.00 | 3.20 | 7582 | 12 |
| 160 x 110 | 6"x4" | 264.00 | 166.00 | 202.00 | 4.00 | 7583 | 8 |
| * All dimensions in "mm" |
