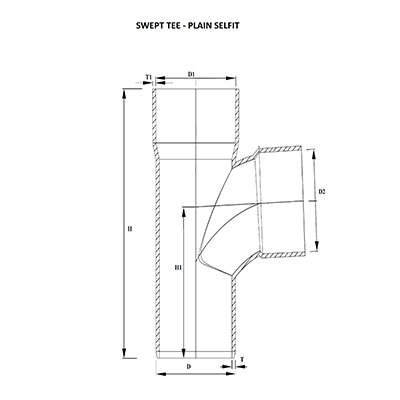

Dimensions of Swept Tee - Plain
| Nominal Dia (mm) |
Nominal Dia (Inch) | H | H1 | D | D1 | D2 | T | T1 | Material Code | Standard Pkg. |
| 75 | 2½" | 199.83 | 112.27 | 75.00 | 75.00 | 75.00 | 3.20 | 2.90 | 7659 | 19 |
| 110 | 4" | 266.80 | 156.40 | 110.00 | 110.00 | 110.00 | 3.30 | 2.90 | 7660 | 10 |
| * All dimensions in "MM" | ||||||||||
